Tilted radiator


"Art Unwin" wrote
These were shore based installations probably in Hawaii or some island.
With respect to resonance, moving away from such as well as changing
from 15 degrees (Frank's 30 degrees divided by two) would provide a pattern
of distinct advantage which the navy is constantly looking for. For a whip
tipped at an angle of 15 degrees can provide a forward pattern of gain which
can be a big deal
__________

Art -

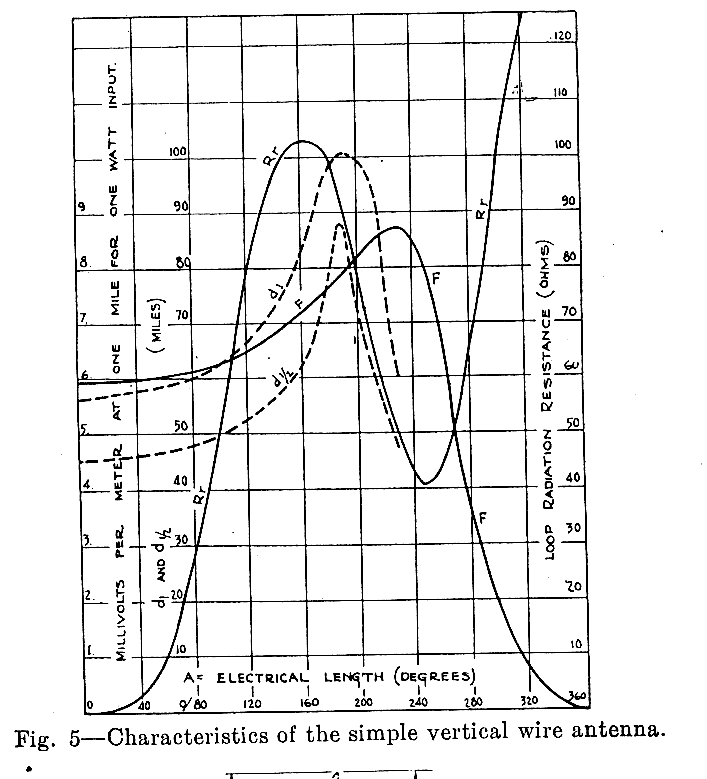

The graphic linked below is the work of George H. Brown of RCA Labs, from a
1936 paper published in the Proceedings of the IRE.

It is a plot of surface wave field intensity vs.monopole height, including
the distance to the "fade zone" where nighttime skywave radiation returns to
earth to via reflection from the ionosphere to interfere with the surface,
or ground wave.

In it please note:

1. Maximum field strength does not occur at electrically resonant heights of
the monopole (that is, where its feed point terminal reactance is zero).

2. The characteristics plotted are not related to azimuth, therefore the
performance of a broadcast monopole will not be enhanced by "tipping." If
it was, AM broadcast stations would have been doing so starting 70 years
ago.

http://i62.photobucket.com/albums/h8...alMonopole.gif

RF

Tilted radiator


On Sep 14, 2:24*pm, John Smith wrote:
Art Unwin wrote:
...
Sometimes you just have to do it for yourself instead of the use of
free speech
where there is no accountability

We have a few words to describe such, here in America (well, real
Americans do anyway):

"Sticks and stones may break my bones but words will never hurt me." --
source unknown.

It dates back to about the time of our forefathers drafting of the
constitution, if not well before ...

IMHO, it could not be said better.

Regards,
JS

JS I am just trying to explain physics and radiation is simple terms
for the layman
this does lead to mis characterizations in favor of clarity.
There is an example of garbled language submitted earlier today to
give the impression
of greatness in stature. A three dimension field was explained where
it provided gain.
The person went into uneadded information to decribe something like it
was a new revalation of science
where in fact it is totally meaningless with respect to related
context. Sure I am not the best guy in explaining things as with my
spelling
but I see no pleasure of infering the silliness of another person by
inflating my own significance by the use of a loose mouth,
Apparently others do !
When the new patent comes out I expect the same comments that I have
heard in the past
I knew that! everybody knows that. What use is it etc
Look to the past and you will see the outlines of the future
It would thrill me to bits if I was given an example where mathematics
proved me wrong as it would give me a reason to re evaluate things
a process I enjoy but that is not to be
Best regards
I have a old mercedes in storage and my daughter has a need for a car
and has asked for it so I have to replaces the deisel lines as they
have probably swelled and some other things. I think it is a bit of
cheek but then it will be nice to see it on the road again
My present deisel that I drive of the same manufacturer she says she
doesn't like.......Women come from Venus no less
Art Unwin KB9MZ.......xg

Tilted radiator


On Sep 14, 3:18*pm, "Richard Fry" wrote:
"Art Unwin" wroteThese were shore based installations probably in Hawaii or some island.
With respect to resonance, moving away from such as well as changing

from 15 degrees (Frank's 30 degrees divided by two) would provide a pattern
of distinct advantage which the navy is constantly looking for. *For a whip
tipped at an angle of 15 degrees can provide a forward pattern of gain which
can be a big deal
__________

Art -

The graphic linked below is the work of George H. Brown of RCA Labs, from a
1936 paper published in the Proceedings of the IRE.

It is a plot of surface wave field intensity vs.monopole height, including
the distance to the "fade zone" where nighttime skywave radiation returns to
earth to via reflection from the ionosphere to interfere with the surface,
or ground wave.

In it please note:

1. Maximum field strength does not occur at electrically resonant heights of
the monopole (that is, where its feed point terminal reactance is zero).
I will look at the URL later Now I put the resonance as second to
equilibrium
as with equilibrium the need for a ground plane is negated In general
terms broadcast stations want equal radiation
around the point of installation knowing that the decibel is not
discernable in their audiance ears





2. The characteristics plotted are not related to azimuth, therefore the
performance of a broadcast monopole will not be enhanced by "tipping." *If
it was, AM broadcast stations would have been doing so starting 70 years
ago.
That is what Harrison said. He also said we have one method of
radiation so why do we need another?
Brown had no reason to isolate horizontal propagation from vertical
propagation and because construction
is way more simple relative to Earth there is no reason to reinvent
the wheel. The Yagi method of radiation
is a very good approximation even tho it disregards the weak force as
it deals more with total gain versus the polarity
of the field. Present day science have more demands on radiation than
Brown would realize. My wife nearly died last year because of a slight
misdirection
at the hospital when a needle nicked the liver when the medical people
placed to much reliance on provided measurements that were beyond the
capabilities of the equipment. As science grows so does understanding
and so does use of radiation which has requirements
way beyond a radio station


Regards
Art

http://i62.photobucket.com/albums/h8...fVerticalMonop...

RF
